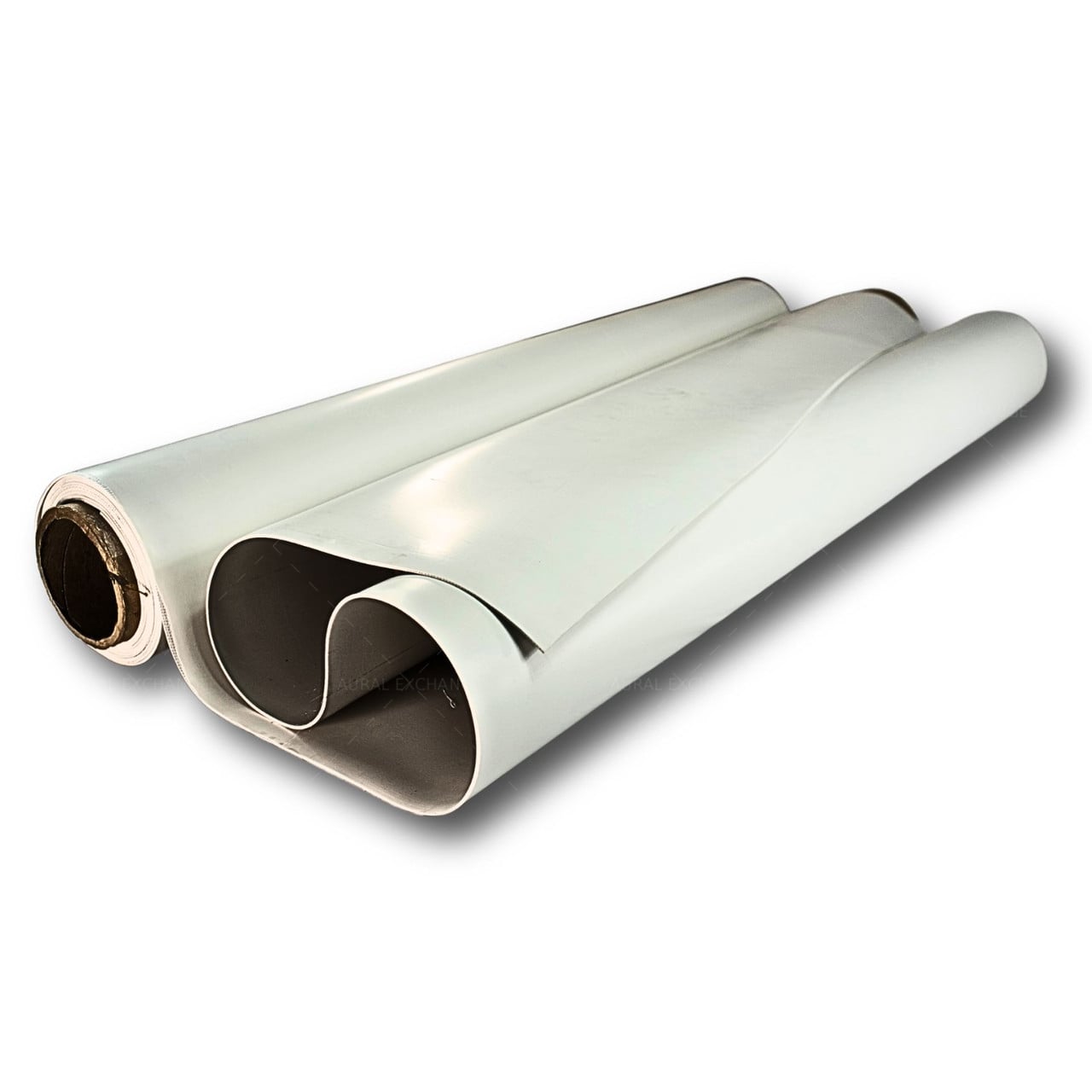

Product Description
Isobrane-UV is a rugged outdoor grade Mass Loaded Vinyl with high tensile strength, UV resistance and water resistance, making it immune to sun and rain. It is used for outdoor applications. Isobrane-UV is a unique, heavy-mineral filled, barium free, visco-elastic acoustical material that is made in Russia, Indonesia & India. Unlike fences or shrubs, this material does extraordinarily well in blocking direct sound, and a unique characteristic of the material sets it apart from other sound barriers when dealing with very low frequencies, especially construction noise and heavy traffic noise.
Scientific Principle
In frequencies of 50Hz and below, the heavy limp mass of Isobrane-UV actually begins to vibrate from low frequency sound waves. In essence it is transforming these low frequency sound waves into mechanical movement and internal friction energy. Laboratory tests indicate that this transformation process inhibits these lower frequencies from penetrating Isobrane-UV, reducing their level by over 60 percent relative to the human ear. In addition, Isobrane-UV becomes an absorbent material in these frequencies with test results show an NRC (noise reduction coefficient) as high as 0.78 (with 1.00 being the max). As such it is clear that Isobrane-UV not only reduces sound as a barrier, but also acts as an acoustical absorbent material in very low frequencies, as opposed to reflecting those
frequencies back like most other barriers. This is the magic of unconstrained layer damping.
Applications:
- Rain Noise reduction on metal roofing
- Noise-reducing outdoor fencing for highways and construction sites
- Noise reduction for AC cooling towers
Isobrane-UV is a patented, highly effective, yet simple to install, outdoor acoustical barrier. The U.V. and mold resistant qualities of Isobrane-UV make it uniquely suited to outdoor use. You can also paint it to blend in to any environment. Isobrane-UV is a flexible material. This yields coincidental gains in sound attenuation at those specific frequencies where rigid barriers have strong deficiencies. As a result you will see much higher levels of performance using Isobrane-UV than you would using typical construction materials. This also means that Isobrane-UV a great solution compared to a wooden fence or any other type of reflective barrier.
Ease of Use
Isobrane-UV is extremely easy to install. You can secure it to a chain link fence or secure it to a frame as a stand alone material. This allows for a quick installation and a quick resolution to any noise complaints. It comes optionally equipped with standard edge reinforcement and stainless steel mounting grommets. We offer installation suggestions for each type of installation.
Details
Isobrane-UV is 2mm thick and comes in standard sizes of 1.8m x 100m. You can also order custom lengths and if your project involves greater heights, Isobrane-UV can be installed vertically rather than horizontally.
Isobrane-UV has an acoustical performance of upto STC40, based on the selected model and method of installation. It is worth noting that the level of attenuation of all outdoor barriers is affected by a variety of factors including end diffraction, angle of diffraction, wind direction, humidity and temperature.
Aural Exchange is Asias leading exporter of Nankarrow Isobrane-UV Exterior Grade Mass Loaded Vinyl to top importers and distributors worldwide. With a strong export presence in Brazil, France, Germany, Italy, the Netherlands, Oman, Portugal, Saudi Arabia, South Africa, Thailand, the United Arab Emirates, the United Kingdom, the United States, Sri Lanka, Vietnam and Qatar, as well as major import markets such as China, India, Australia, Mexico, and Canada, Aural Exchange has built a solid reputation for reliability and consistency. Backed by consistent monthly production capacity, supported by a strategic factory network across South Asia, we ensure fast, efficient, and cost-effective deliveries to our global partners. Known for quality, innovation, and dependable service, Aural Exchange is the trusted choice for buyers seeking to import Nankarrow Isobrane-UV Exterior Grade Mass Loaded Vinyl for acoustic, commercial and industrial applications.
