ProductsSoundCam 2.0 – Portable Acoustic Camera

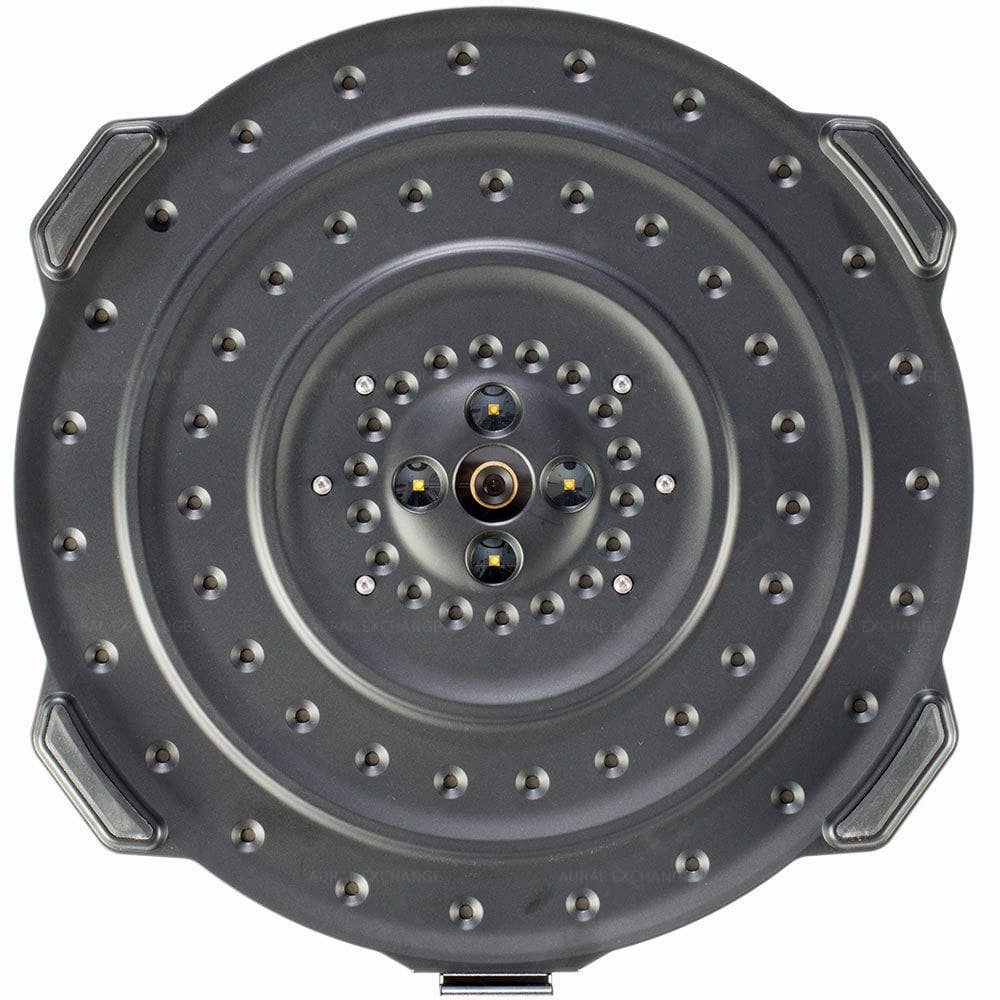

SoundCam 2.0 - Portable Acoustic Camera
SoundCam 2.0 - Portable Acoustic Camera - Image 2
SoundCam 2.0 - Portable Acoustic Camera - Image 3

SoundCam 2.0 – Portable Acoustic Camera

Special Import
In stock
  • Real-time results at 100 fps
  • Handheld device with IP54 protection
  • Integrated object lighting
  • 8 configurable buttons for fast control
  • Audible and ultrasound range
  • Analysis up to 60 kHz

Bulk/Project Enquiry

Product Description

The SoundCam 2.0 is the first camera that creates acoustic images even in a high frequency range (greater than 24kHz). Like all SoundCam products, the system is very easy to use. The SoundCam 2.0 locates sound sources in real time and displays the results immediately on the screen.

SoundCam 2.0 can be used in a wide frequency range up to 60 kHz, making it suitable for a variety of applications, including product development, preventive maintenance and occupational safety.

SoundCam 2.0 consists of 64 microphones with a sampling rate of 200 kHz, an optical camera, an integrated data acquisition and analysis system, and a display and control unit with touch screen and hardware buttons. The system displays high-resolution results on the screen in real time. The high speed and accuracy make the system special even in a high frequency range up to 60 kHz.

Features:

  • Real-time results at 100 fps
  • Handheld device with IP54 protection
  • Integrated object lighting
  • 8 configurable buttons for fast control
  • Audible and ultrasound range
  • Analysis up to 60 kHz

Technical Specifications:

  • Dimensions: 34 x 34 x 9.5 cm (13.4 x 13.4 x 3.8 inch)
  • Weight: 3 kg (7 lb)
  • Waterproof: IP54
  • Anti-theft system: Kensington lock
  • Battery Life: 3.5 h; fully charged in 1.5 h
  • Tripod socket: 1/4 inch
  • Buttons: 8 configurable + power on/off
  • Size: 7 inch / 15.5 x 8.6 cm
  • Resolution 800 x 480 px
  • Touch: 10 finger capacitive touch
  • Processor: ARM A53 4×1.2 GHz with 1 GB RAM
  • Internal storage: 32 GB or 512 GB
  • OS: Linux for ARM
  • USB: Yes, For data export
  • Ethernet LAN: Yes, (for running software on laptop/PC)
  • Audio: 3.5 mm for headphones
  • Microphones: 64 digital MEMS
  • Frequency range: Up to 60 kHz (recommended)
  • Sample rate: 200 kHz
  • Sound pressure: Max. 120 dB
  • Resolution: 320×240 (50fps) or 640×480 (16fps)
  • Lighting: 4 LEDs
  • Aperture angle: 70° (FoV horizontal)
  • Shutter: Global shutter
  • Battery: Li-ion rechargeable battery (48 Wh)
  • Input: 19V with power adapter
  • Management Smart: work and charge simultaneously

Applications:

  • Maintenance and servicing
  • Health and safety
  • NVH, Squeak and Rattle measurement
  • Product developement
  • Noise localization
